DrArtex Baffle Plus Integra DBP07.2022 Box – 6.5mm Sound Dampening Sheet (Box of 12)
R1 650,00
DrArtex Baffle Plus Integra DBP07.2022 Box – 6.5mm Sound Dampening Sheet (Box of 12)
Latest developed Baffle Integra serves dual purpose of sound and heat insulation, while slightly heavier than Baffle Plus – it has significantly higher level of sound insulation, at least 6dB higher. High structural stability provides for melting point at 140°C and no moisture absorption. High elasticity of this product makes it very easy to install in even the most complex areas of the car.
Baffle Comparison Table
| Baffle Plus | Integra | BW | Zima | |
| Thickness (mm) | 5.0 | 6.5 | 15 | 12 |
| Weight (kg/m²) | 1.4 | 3.9 | 3.1 | 4.1 |
| Sound insulation | ●●●●○ | ●●●●● | ●●●●● | ●●●●● |
| Heat insulation | ●●●○○ | ●●●○○ | ●●●●○ | ●●●●● |
| Diffusion | ●●○○○ | ●●○○○ | ●●●●● | ●●○○○ |
| Vibration damping | ●●○○○ | ●●○○○ | ●●●●○ | ●●○○○ |
| Water-proof | ✓ | ✓ | ✓ | X |
| Application | Roof Doors Floor Wheel Arches | Roof Doors Floor Wheel Arches | Roof Doors Floor Wheel Arches | Roof |
Packaging

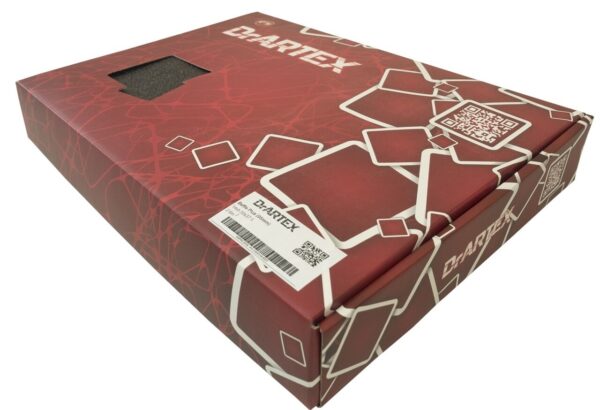

1 box of Baffle Plus Integra = 12 sheets 50×27.5 cm each = 1.3 m²
Application areas
Doors, roof, floor, wheel arches
Composition

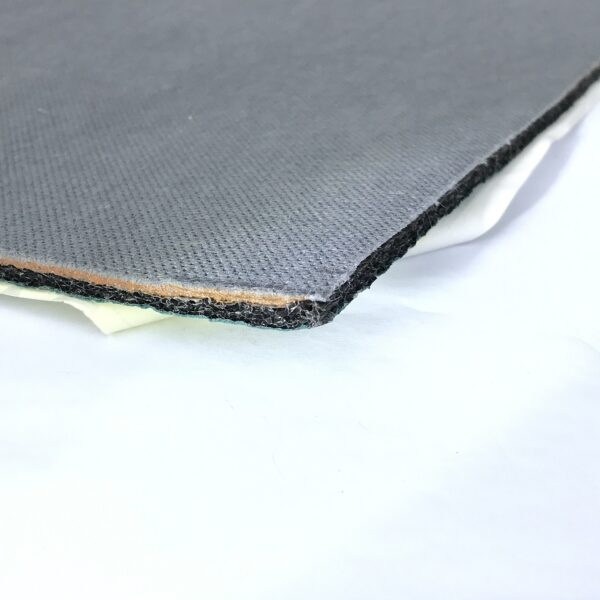

Five-layer structure consists of non-woven fabric, noise insulation heavy membrane layer, flexible foamed resin and synthetic butyl rubber adhesive layer with anti-adhesive paper.
